1/5-Axis NEMA34 Closed-Loop 86-Step Hybrid Stepper Motor Driver Power Supply Kit
4.5Nm / 1 Axis CNC Kits---without Power Suplly
Sale price
$132.36
Regular price
$158.83
Skip to product information
1/3/5Axis Nema34 Closed Loop Stepper Hybrid Servo Motor Driver Kit+60V DC Power
1/5-Axis NEMA34 Closed-Loop 86-Step Hybrid Servo Motor Driver Power Supply Kit

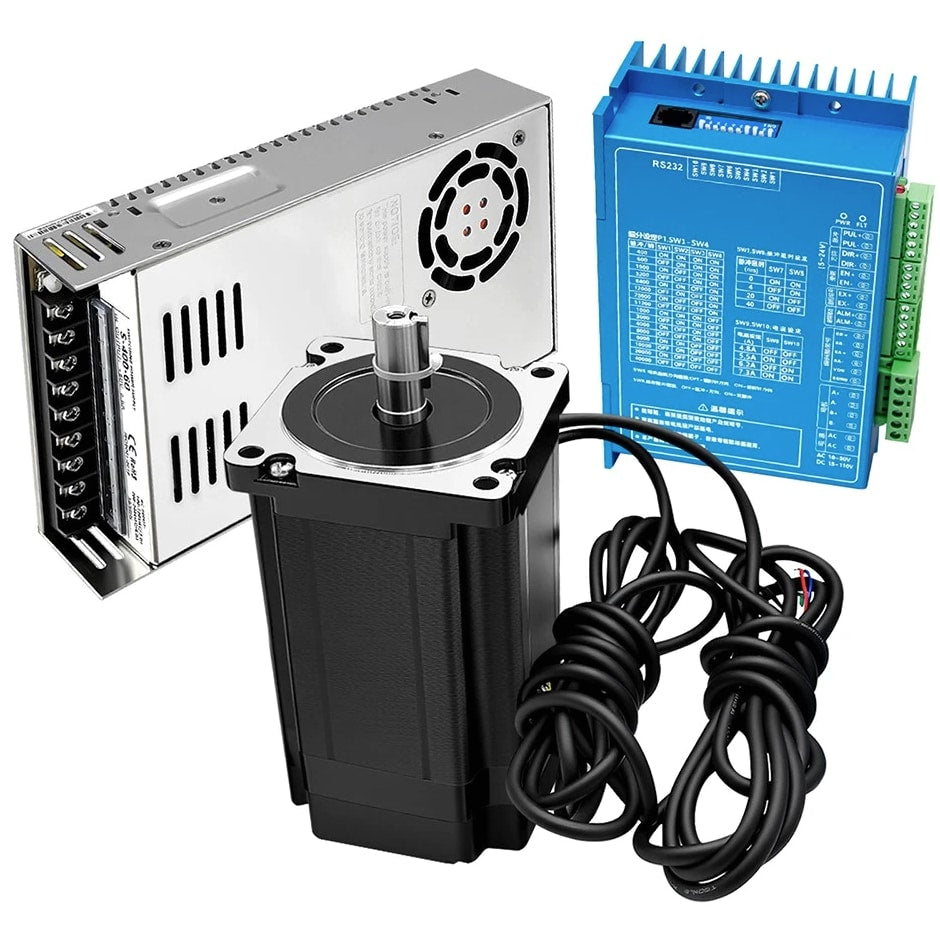

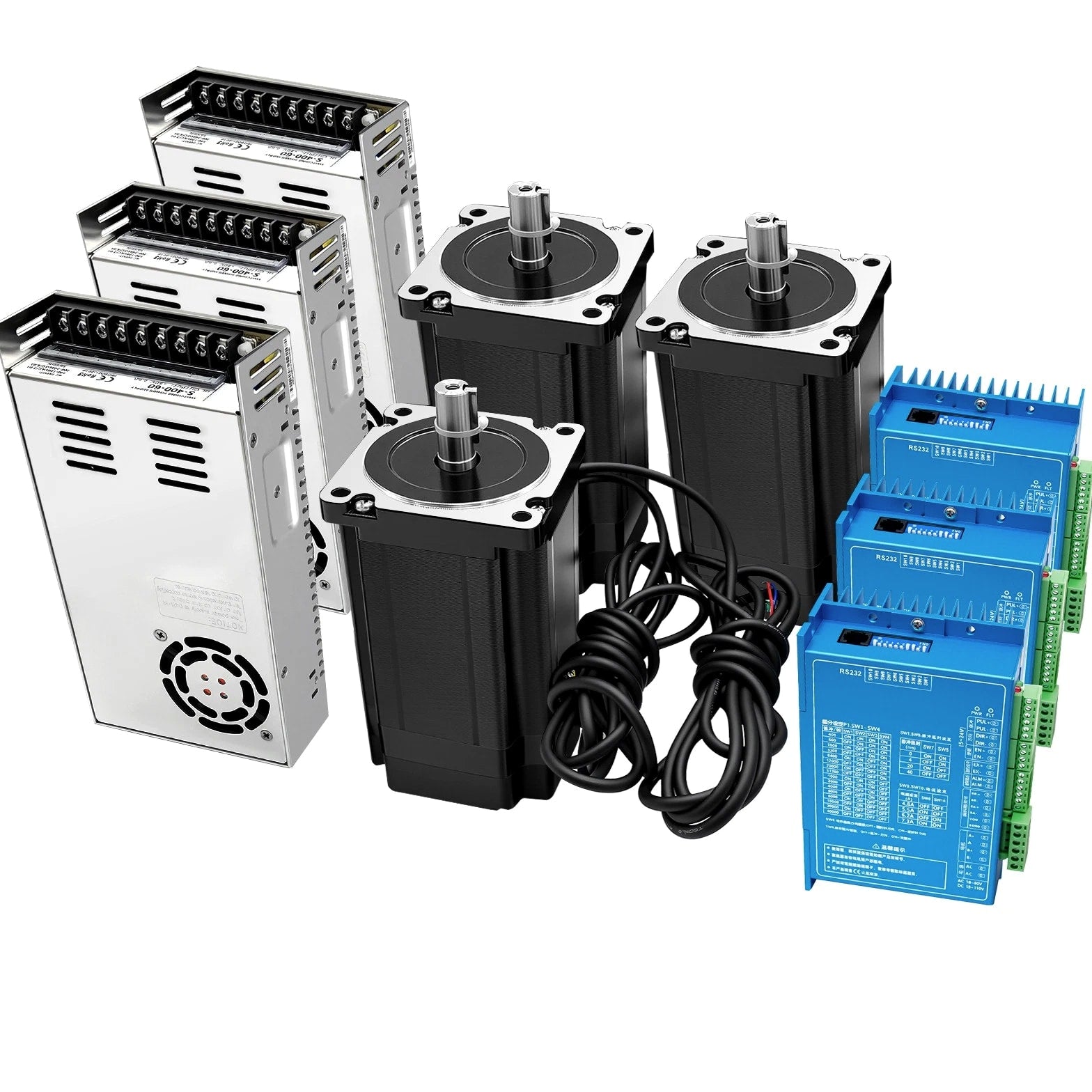

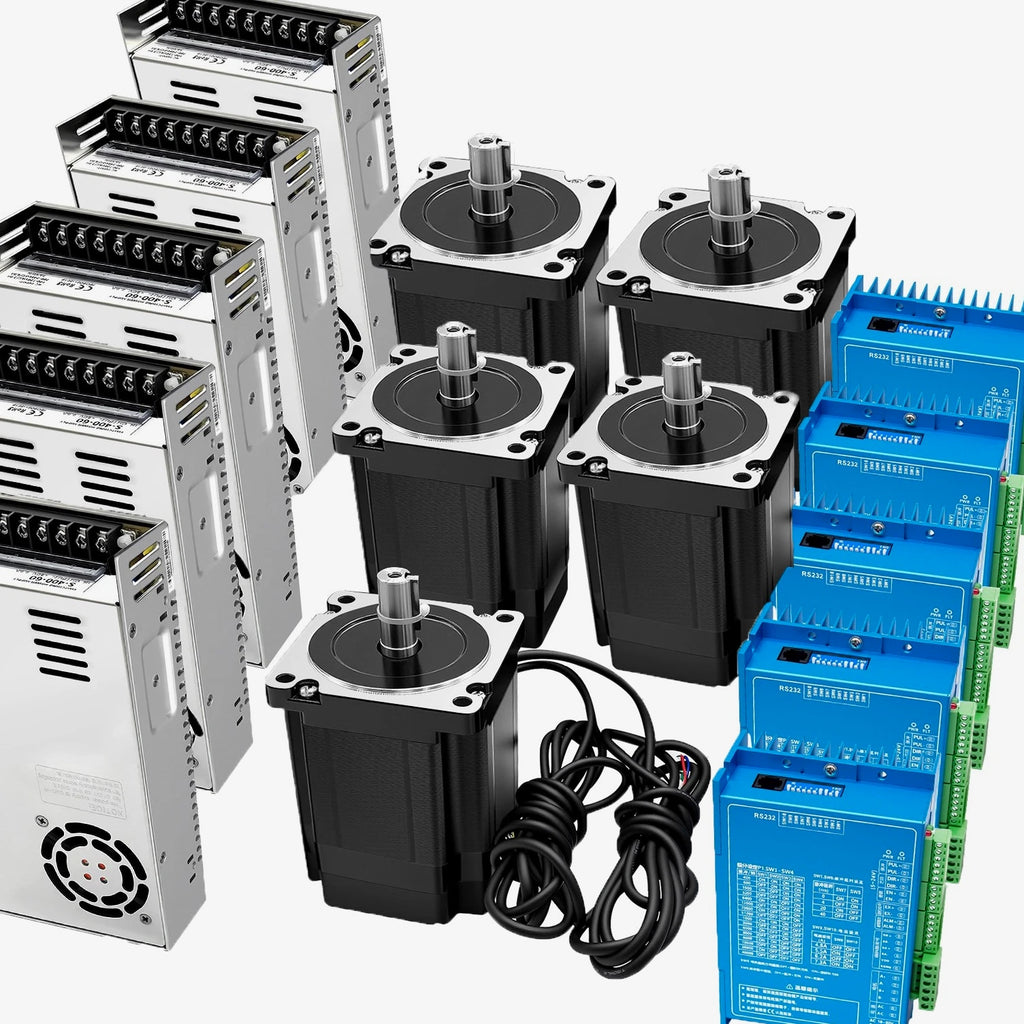

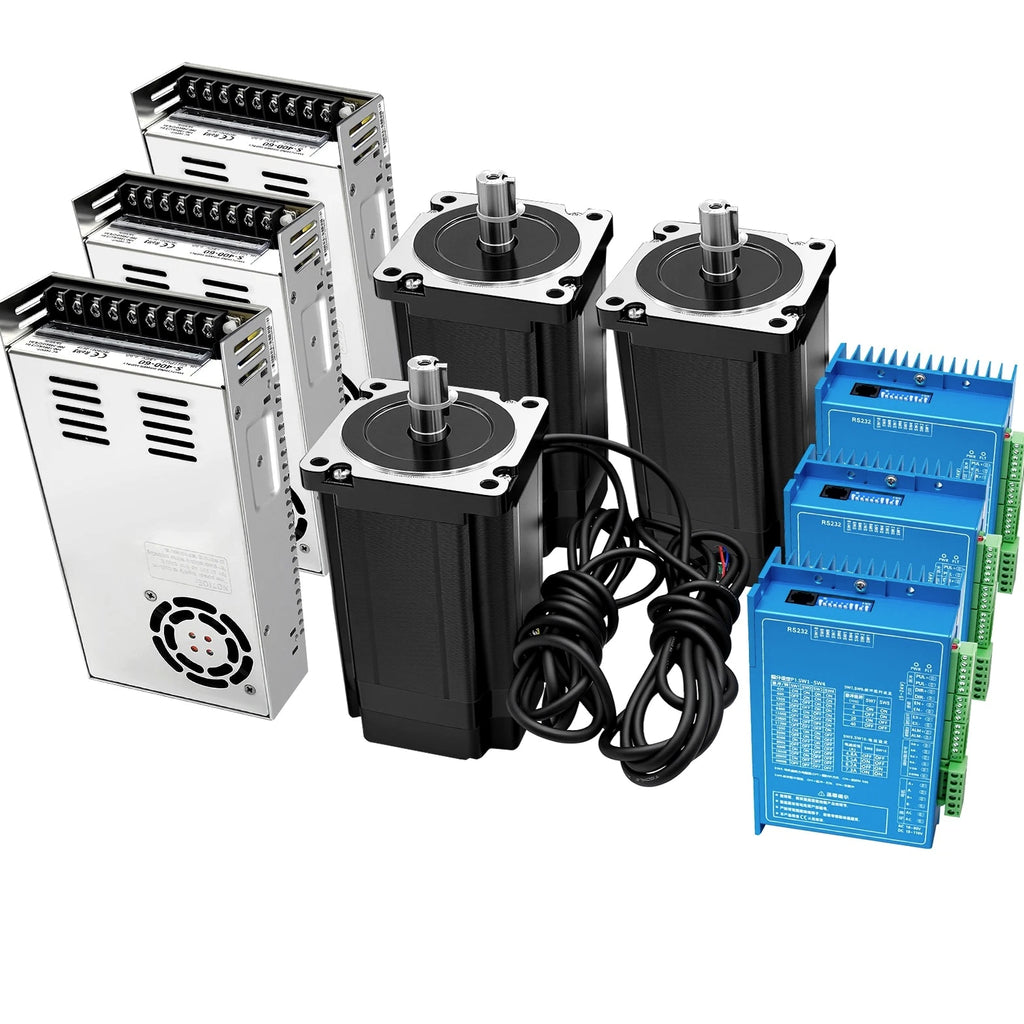

✅[Packing List]
1~5* HBS86H Driver
1~5 * Closed loop stepper Motor(4.5Nm/8.5Nm/12Nm,please choose you need)
1~5 *
3M Encoder Cable
1~5 * 60V, 400W switching power supply

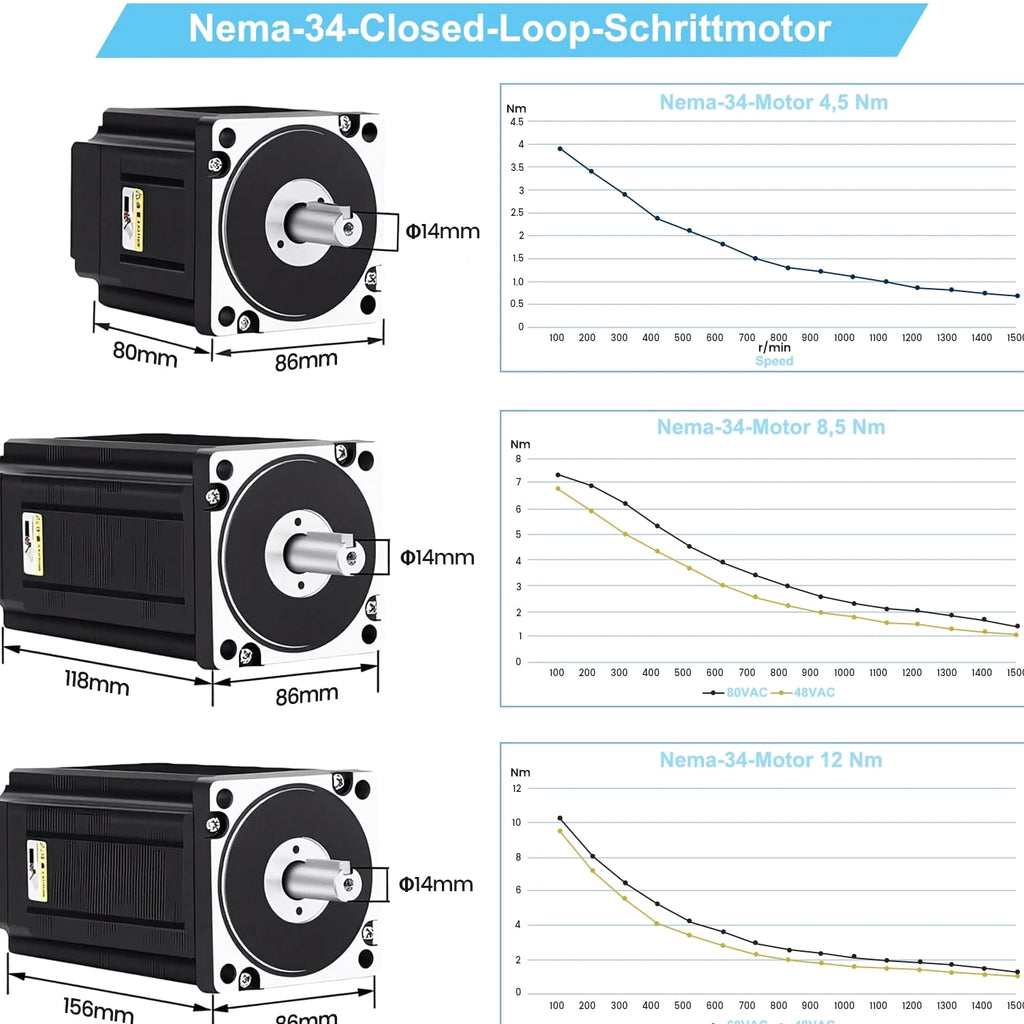

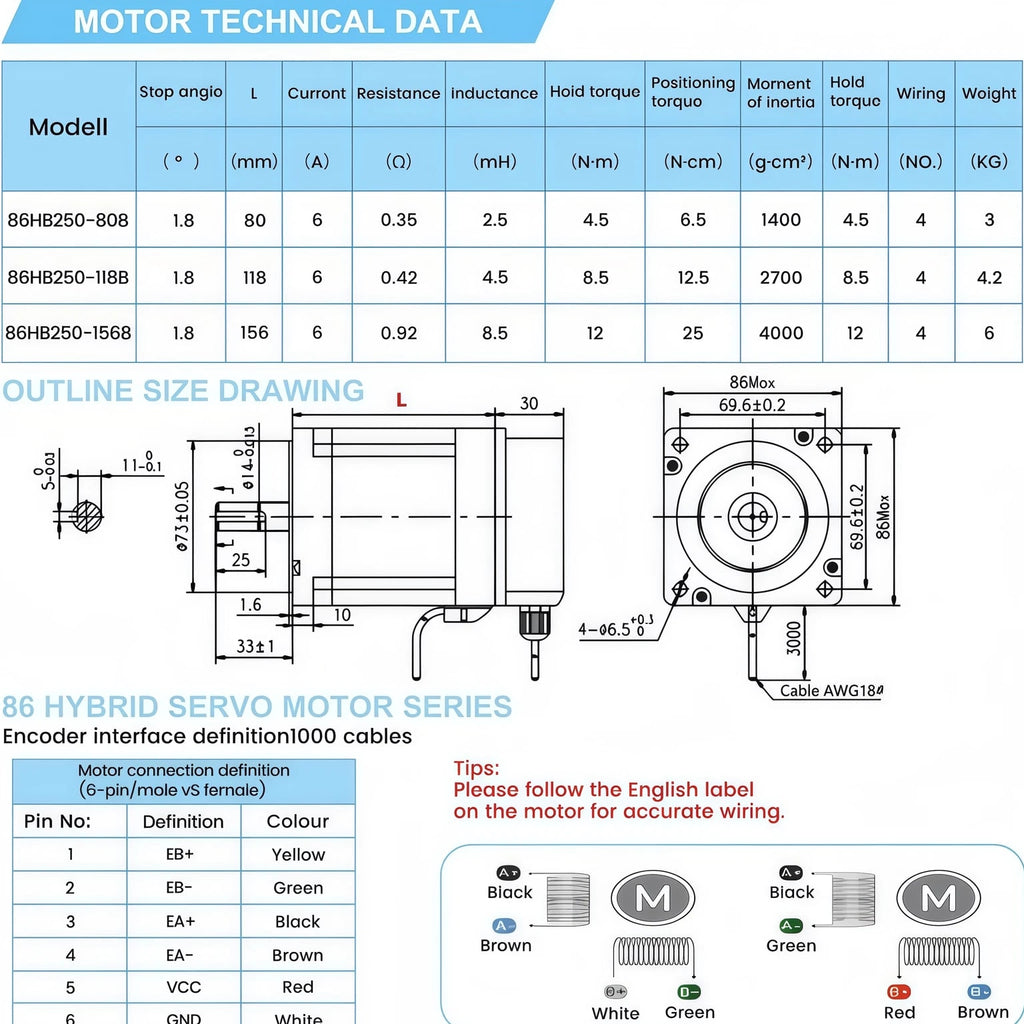

Motor Parameters：
Step angle: 1.8°
Body length: 80/118/156mm，please select as needed
Operating current: 6A
Holding torque: 4.5Nm/8.5Nm/12Nm, please select as needed
Wiring method: 4-wire

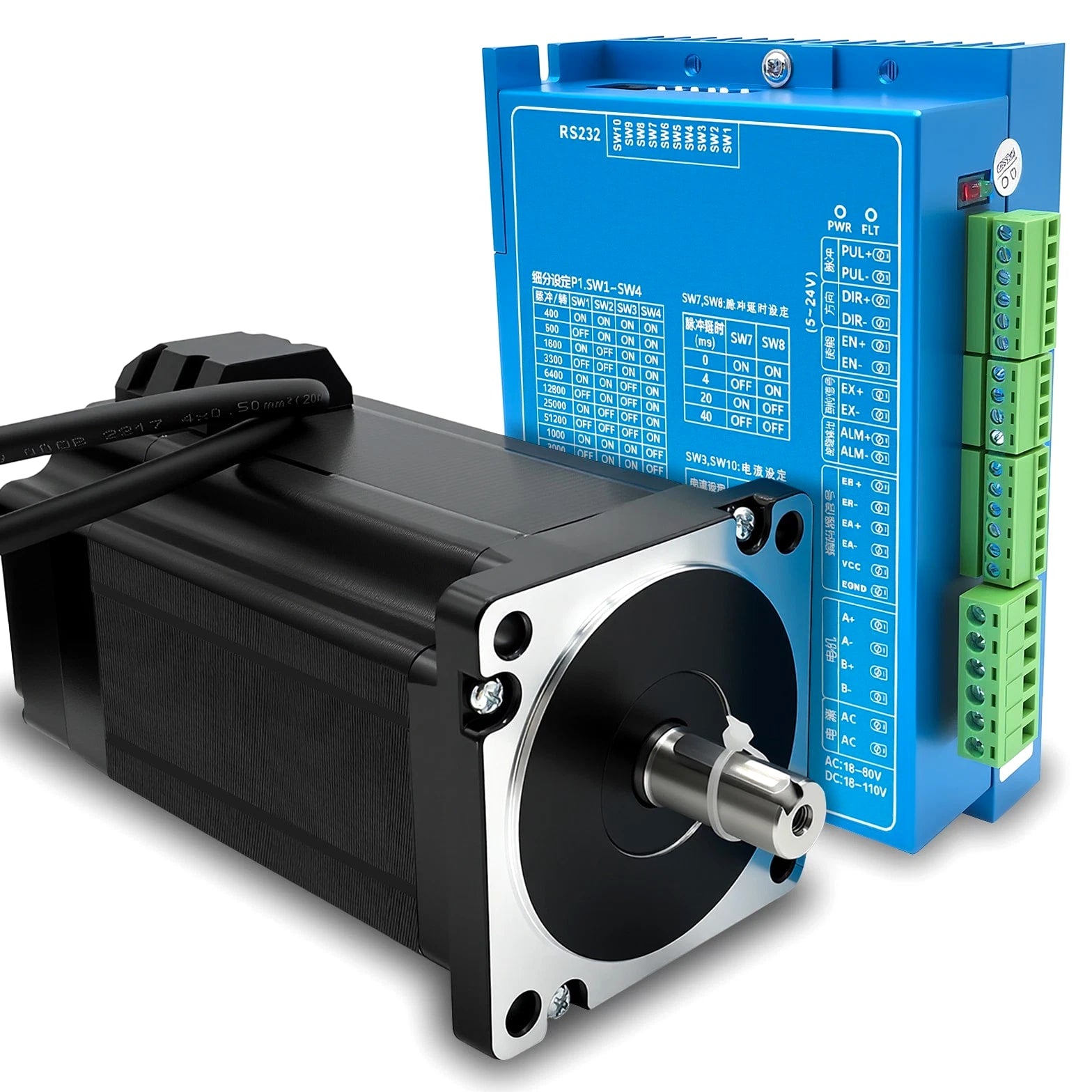

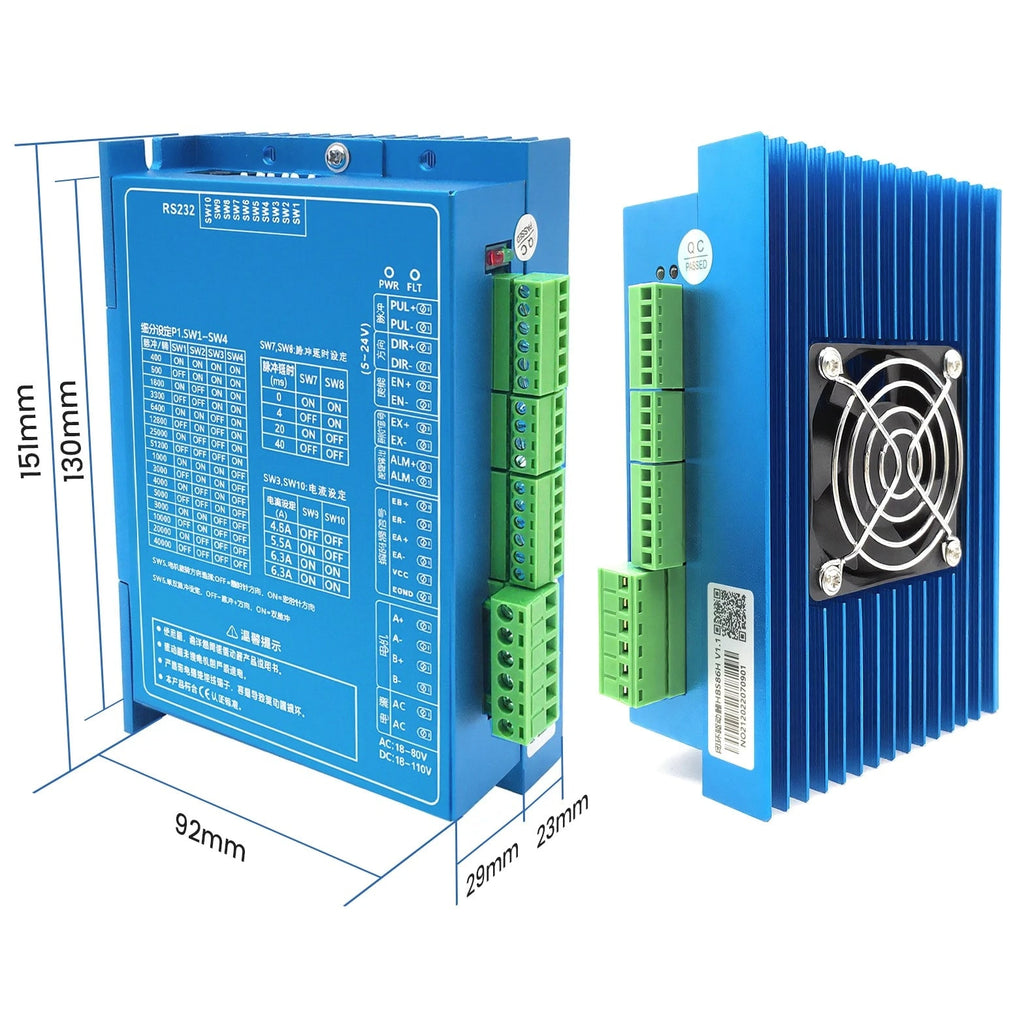

HBS86H Driver functional characteristics：
Model:HBS86H
Type: DSP Closed loop stepper drive
Maximum peak current: 8A
Impulse response frequency: 200KHz
Micro-stepping driver:
200~51200ppr
Input Voltage:
20~80VAC/30-110VDC
Protective function: Over voltage, over current, tracking error, over proof
Signal input: Support PUL/DIR and CW/CCW modes (difference)
Compatible : 5~24V signal (Don't need a resistor)
Type of cooling:
Air-cooling
Logic Signal Current: 7-16 Ma
Power Supply parameter:
Power:400W
Input Voltage (AC):110V/220V(+-10%)
Output Voltage(DC):60VDC
Output Current: 6.6A
Safety Compliance:CCC/ FCC / CE
Description
Achieve exceptional precision and accuracy with the Nema 34 closed loop stepper motor kit, delivering reliable performance for your demanding tasks. The Nema 34 closed loop stepper motor driver kit find extensive use in fields such as machine tools, 3D printers, CNC machine, carving machine and automation application.
Q:What are the key features of the closed loop stepper motor driver kit?
A:The closed loop stepper motor driver kit boasts features such as precise position control, real-time feedback, and automatic error correction. It ensures reliable and accurate motor performance even in challenging environments.
Q:What are the applications of the closed loop stepper motor driver kit?
A:The closed loop stepper motor driver kit finds applications in various industries requiring precise and reliable motion control, such as CNC machi
